Redis

This page provides information for connecting your application to your Redis database and using queries to manage its content.

Connect Redis​

caution

Appsmith does not support connection to Redis using TLS. If you are a cloud user, you should whitelist the IP address of the Appsmith deployment 18.223.74.85 and 3.131.104.27 on your database instance or VPC before connecting to a database. If you're using Redis Cloud, you can see Configure CIDR allow list for more details.

Connection parameters​

The following section is a reference guide that provides a complete description of all the parameters to connect to a Redis database.

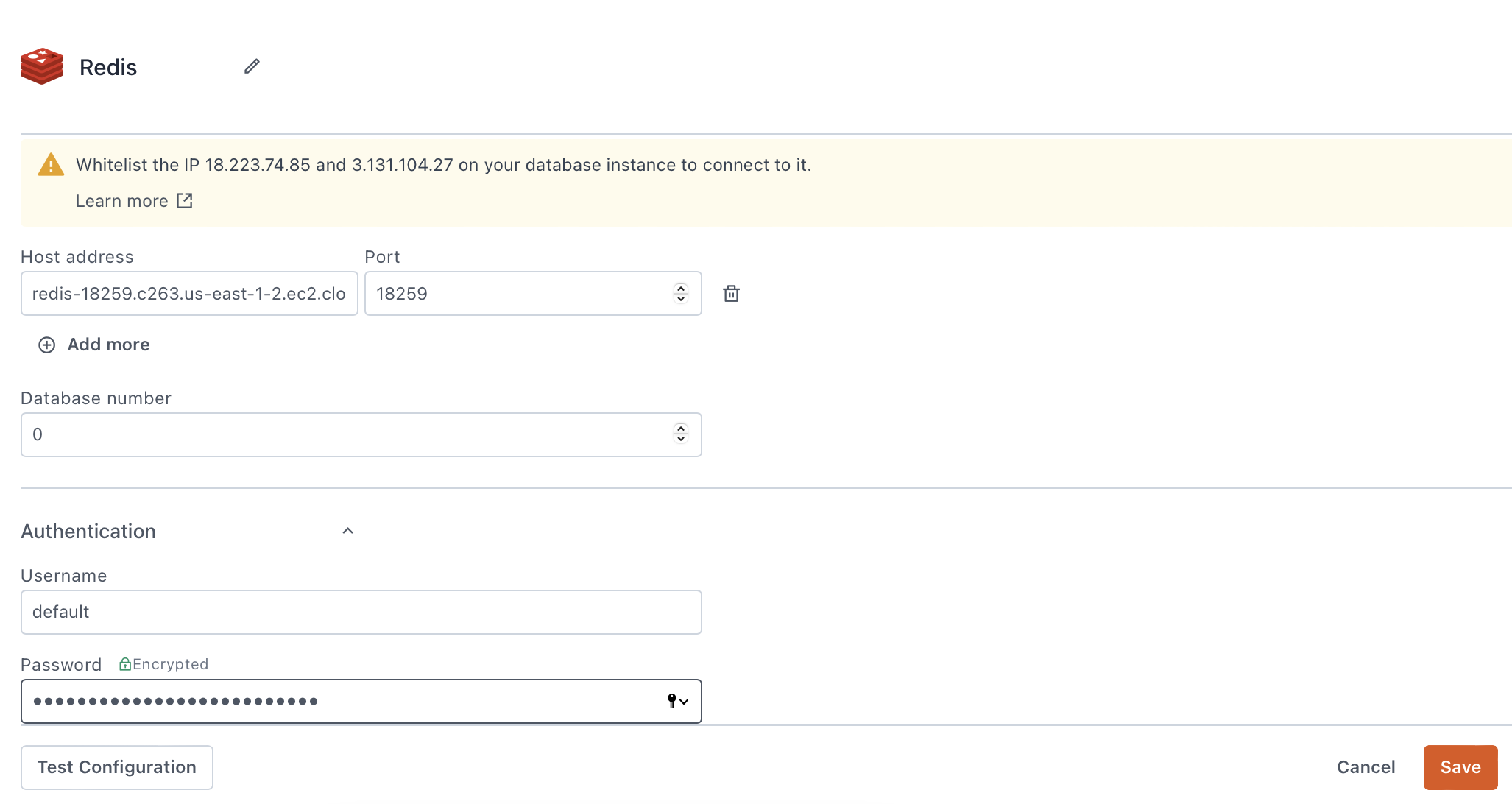

Configuring a Redis datasource.
Configuring a Redis datasource.

Host Address​

The network location of your Redis database. This can be a domain name or an IP address.

Port​

The port number to connect to on the server. Appsmith connects to port 6379 by default if you do not specify one.

Database Number​

The number that identifies which database on your Redis instance you're connecting to. This is a number between 0 and 15, and is 0 by default.

Username​

The username for your Redis user.

Password​

The password for your Redis user.

Query Redis​

The following section provides examples of creating basic CRUD queries for Redis.

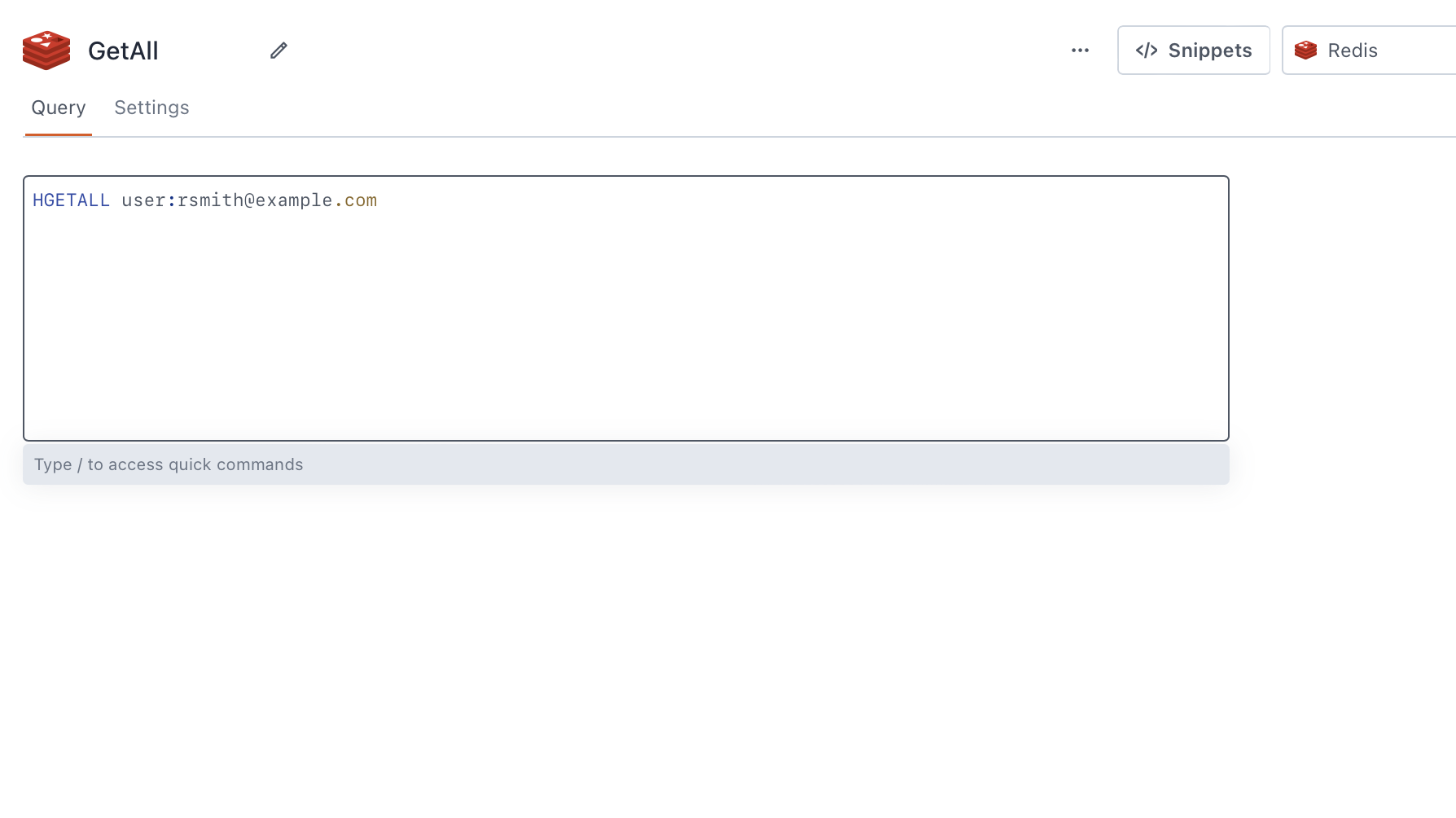

Configuring a Redis query.
Configuring a Redis query.
info

See the Redis documentation for a full list of Redis commands and how to use them.

Fetch data​

HGETALL {{ SearchInput.text }}

In the above example, SearchInput is the name of an Input widget being used to collect a user's search term and send it in the query. The HGETALL command returns all keys and values of a Redis hash with a matching name if it exists.

To store a single key not in a hash, use GET:

GET {{ SearchInput.text }}

For more information on how to fetch paginated data, see Setup Server-Side Pagination on Table.

Insert data​

HSET user:{{ EmailInput.text }} username {{ UsernameInput.text }} gender {{ GenderDropdown.selectedOptionVaue }}

In the above example, EmailInput, UsernameInput, and GenderDropdown are the names of Input and Select widgets being used to collect user input and send it in the query to create a Redis hash.

To insert a single key/value pair not in a hash, use SET:

SET username {{ UsernameInput.text }}

For more information on how to insert data, see Insert Data.

Update data​

See Insert data above, as the syntax is identical using the HSET and SET commands. For more information on how to update Table data, see Update Data Guide.

Delete data​

HDEL user:{{ EmailInput.text }} {{ FieldDropdown.selectedOptionValue }}

In the above example, EmailInput and FieldDropdown are the names of Input and Select widgets being used to collect user input that identifies which field of a given Redis hash to delete, and to send them in the query.

To delete the entire Redis hash or a single key/value pair, use DEL:

DEL user:{{ EmailInput.text }}

For information on how to delete data in a Table, see Delete Data in Table.

Troubleshooting​

If you are experiencing difficulties, you can refer to the Datasource troubleshooting guide or contact the support team using the chat widget at the bottom right of this page.
